Data elements

Data elements are the data that a creator can customize. You can add the data elements to Component in the Component Editor.

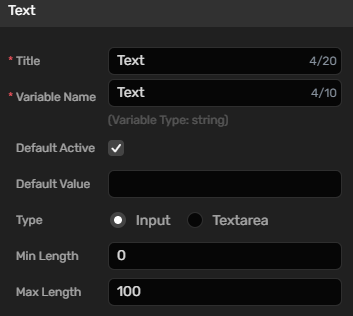

Text

Property	Description
Title	The title of this field. 20 characters at most.
Variable Name	The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most.
Default Active	The default state of the Component. When selected, the default state is active.
Default Value	The default value of this field
Type	The type of the text input
Min Length	The minimum length of the text.
Max Length	The maximum length of the text.

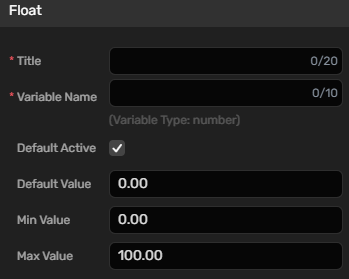

Float

Property	Description
Title	The title of this field. 20 characters at most.
Variable Name	The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most.
Default Active	The default state of the Component. When selected, the default state is active.
Default Value	The default value of this field
Min Value	The minimum length of the text.
Max Value	The maximum length of the text.

Float3

Property	Description
Title	The title of this field. 20 characters at most.
Variable Name	The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most.
Default Active	The default state of the Component. When selected, the default state is active.
Default Value	The default value of this field

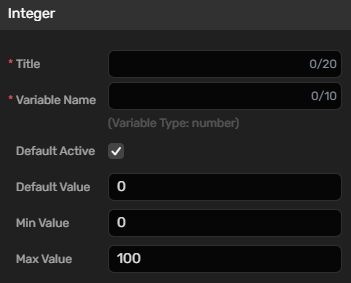

Integer

Property	Description
Title	The title of this field. 20 characters at most.
Variable Name	The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most.
Default Active	The default state of the Component. When selected, the default state is active.
Default Value	The default value of this field
Min Value	The minimum length of the text.
Max Value	The maximum length of the text.

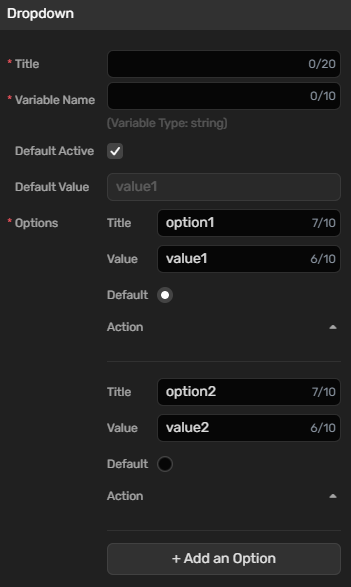

Dropdown

Property	Description
Title	The title of this field. 20 characters at most.
Variable Name	The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most.
Default Active	The default state of the Component. When selected, the default state is active.
Options	Title: The title of this field. 10 characters at most. Value: The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most. Default: The active option by default. Action: Allows you to display or hide other data elements dynamically.

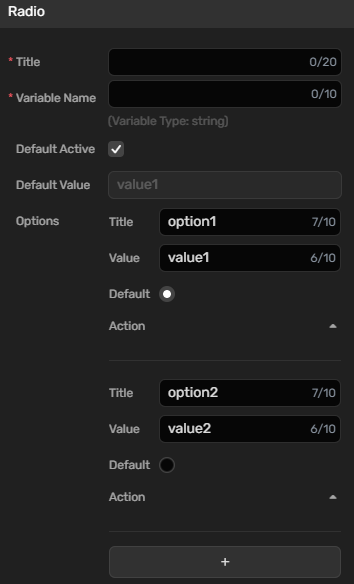

Radio

Property	Description
Title	The title of this field. 20 characters at most.
Variable Name	The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most.
Default Active	The default state of the Component. When selected, the default state is active.
Default Value	The default value is the value you configure in Options.
Options	Title: The title of this field. 10 characters at most. Value: The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most. Default: The active option by default Action：Allows you to display or hide other data elements dynamically.

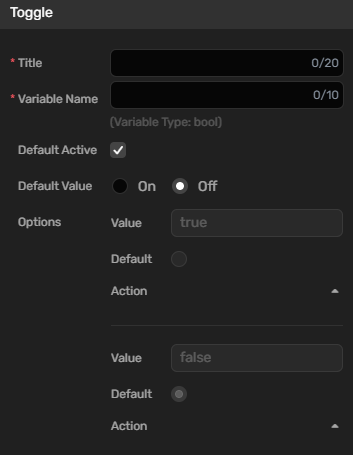

Toggle

Property	Description
Title	The title of this field. 20 characters at most.
Variable Name	The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most.
Default Active	The default state of the Component. When selected, the default state is active.
Default Value	The value is off by default.
Options	Title: The title of this field. 10 characters at most. Value: True or false. Default: The active option by default. Action: Allow you to display or hide other data elements dynamically.

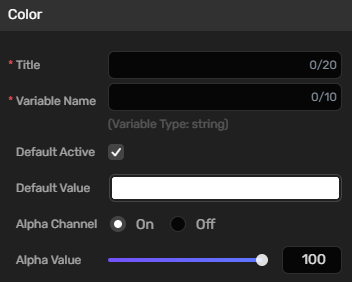

Color

Property	Description
Title	The title of this field. 20 characters at most.
Variable Name	The name of the variable. It only consists of numbers and letters and can not start with a number. 10 characters at most.
Default Active	The default state of the Component. When selected, the default state is active.
Default Value	The default value is FFFFFF.
Alpha Channel	Determines whether to display alpha value.
Alpha Value	The alpha value specifies the transparency of the color. The default value is 100, which represents fully opaque. If you set it to 0, the color is fully transparent.
