Triggering a custom event upon item collection

info

This tutorial is intended for Horror Game Kit users.

Overview

This tutorial guides creators to create a custom event—triggering thunder, rain, and lighting changes—when the player collects an item. Using Yahaha's Custom Event system and Lua scripting, you will extend the kit’s capabilities beyond built-in components.

Prerequisites

Before starting, ensure you have:

• Familiarity with Horror Game Kit, especially the Event Trigger component.
• Basic knowledge of the Lua programming language.
• Experience with Lua Components or completion of the Quick Start Guide

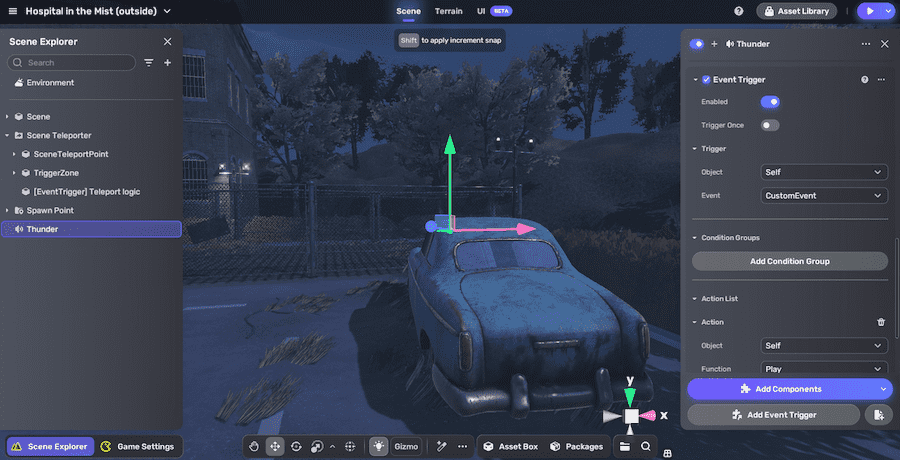

Step 1: Set up thunder audio

1. In Scene Explorer, create a new audio object by choosing Create > Audio.

2. (Optional) Rename the audio object to Thunder.

3. Open the object's Properties window and assign a thunder audio clip (e.g., thunder (1)).

4. Add a Custom Event Notifier component to the audio by choosing Add Components > Custom Event Notifier.

5. Configure the Event Trigger component on the audio:

   • Trigger Object: Self
   • Trigger Event: CustomEvent
   • Action Object: Self
   • Action Function: Play

   Leave other fields as default. This setup plays the thunder sound when the custom event fires.

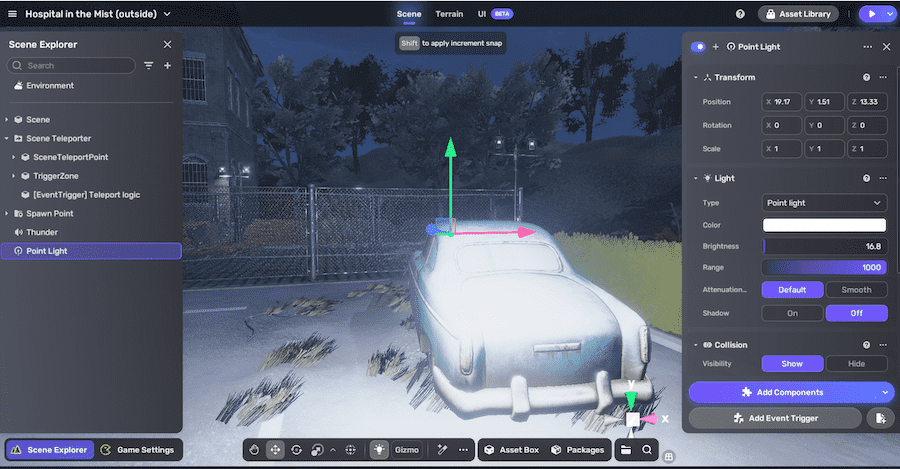

Step 2: Set up lighting

1. In Scene Explorer, add a point light source by choosing Create > Light > Point Light.
2. Position and adjust brightness to contrast with a dark environment.
3. Add the Custom Event Notifier component to the light. This allows the light to respond to custom event notifications.

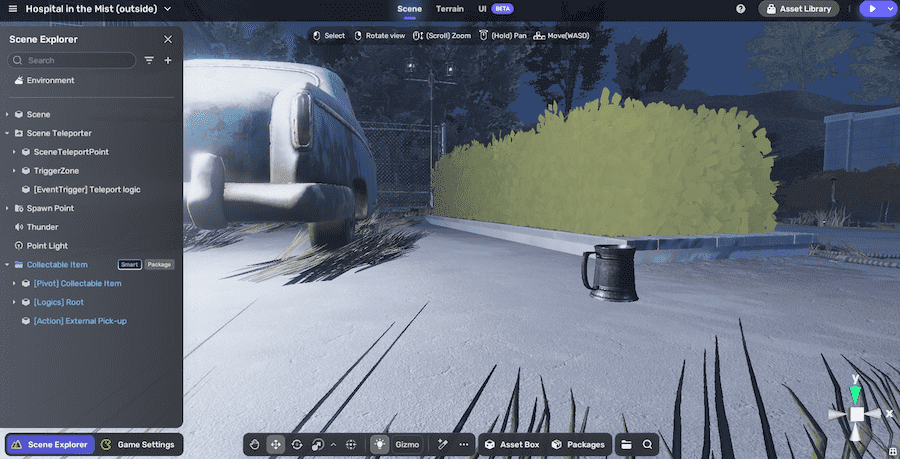

Step 3: Add a collectible

1. From Packages, add the Collectable Item smart asset to your scene. It includes built-in collectible logic.
2. Position it as desired.

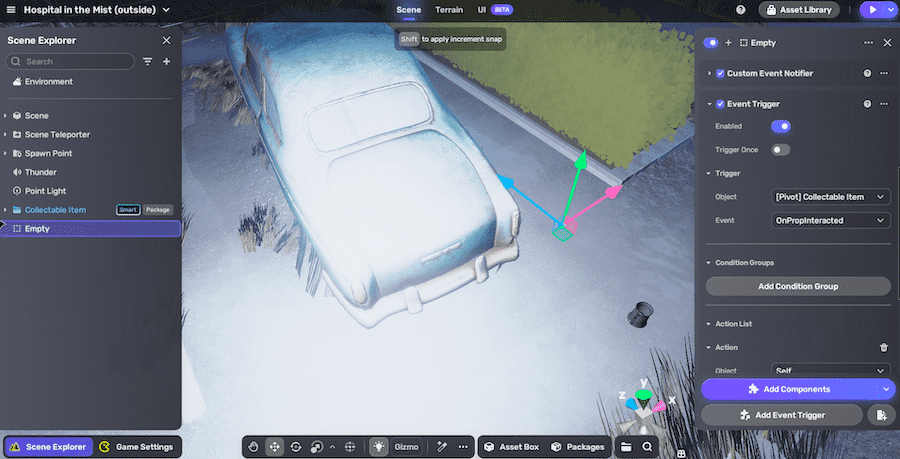

Step 4: Create and configure an empty object for event handling

1. In Scene Explorer, add an empty object from Create > Empty Object to your scene. This will host the Lua script controlling your custom event logic.

2. Attach components to the empty object

3. Add a Custom Event Notifier component.

4. Add an Event Trigger component with the following settings:

   • Trigger Object: The collectible item
   • Trigger Event: OnPropInteracted
   • Action Object: Self
   • Action Function: NotifyCustomEventNow Leave other fields as default.

   This config sends a custom event to the empty object when the collectible is interacted with.

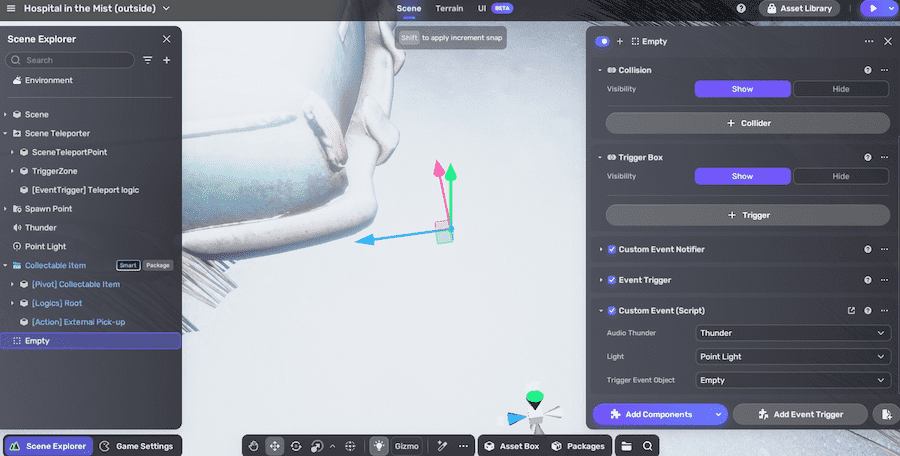

Step 5: Define and assign script fields

1. Add a Lua script to the empty object by clicking Add script, then name it CustomEvent.
2. In the CustomEvent.lua script, define fields for audio, light, and empty object:

local fieldDefs = {
    {
        name = "AudioThunder",
        type = "GameObject"
    },
    {

        name = "Light",
        type = "GameObject",

    },

    {
        name = "triggerEventObject",
        type = "GameObject"
    },
}
script.DefineFields(fieldDefs)

3. In the empty object's Properties window, assign the thunder audio, point light, and empty object to these fields.

Step 6: Implement runtime logic

In the empty object's CustomEvent.editor.lua script, add the following script to control the weather, audio and lighting effects:

local YaResourceManager = YahahaMiddleLayerSlim.Resource.YaResourceManager
local skySystem = require("com.yahaha.sdk.graphics.SkyUtils")
local weatherSystem = require("com.yahaha.sdk.graphics.WeatherUtils")

-- Script to trigger dark weather effects (thunder, rain, lightning changes)

-- Called during in-game response to trigger dark mode
function response_in_game()
    SetDark()
end

-- Activates thunder audio, darkens Sun, starts to rain, and disables light
function SetDark()
    script.fields.AudioThunder:SetActive(true)
    skySystem.SunColor = skySystem.SunColor + Color.New(0,0,0,255)
    weatherSystem.ToRain()
    if script.fields.Light then
        script.fields.Light:SetActive(false)
    end

    if script.fields.AudioThunder then
        yahaha.EventSystem:NotifyObjectEvent(script.fields.AudioThunder, "com.yahaha.sdk.trigger.CustomEvent")
    end
end

local eventObject = script.fields.triggerEventObject

-- Callback to run SetDark when event fires
local callback = function()
    -- Your loigc here
    SetDark()
end

-- Register callback to custom event if eventObject exists
if eventObject then
    yahaha.EventSystem:RegisterObjectEvent(eventObject, "com.yahaha.sdk.trigger.CustomEvent", callback)
end

-- Clean up event registration on script disposal
script.OnDispose(function()
    yahaha.EventSystem:UnregisterObjectEvent(eventObject, "com.yahaha.sdk.trigger.CustomEvent", callback)
end)

Step 7: Playtest

Enter Play Mode and collect the item. Confirm that thunder sounds play, rain starts, and lighting changes as scripted.

Related resources

• Custom event notifier
• For detailed environment system APIs, refer to the Sky and Weather documentation.
• Use F5 to start playtesting and F12 to open the console for debugging.
